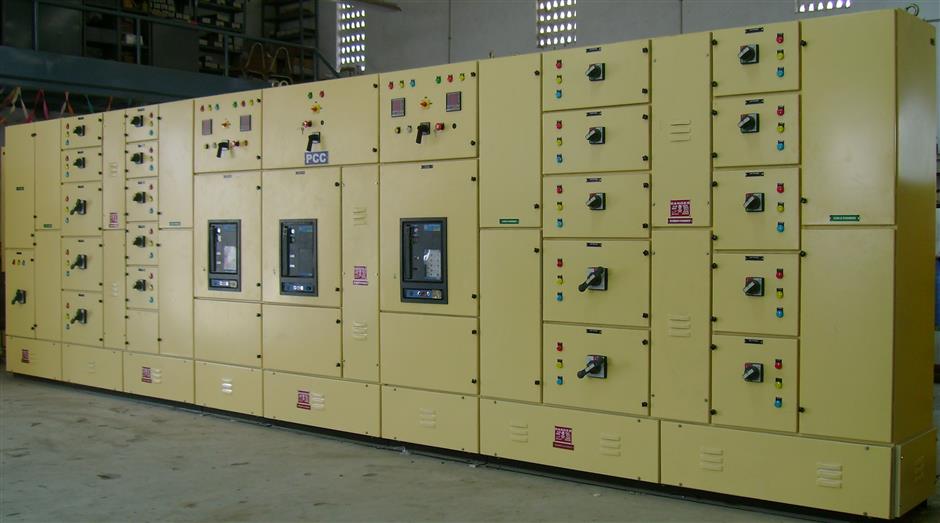

LV Switchgear Panels
Features
- Custom Designed LV Switchgear Panels
- Busbar ratings upto 4000A
- Short circuit withstand capacity of 50kA for 1 sec RMS
- Cubicle type compartmentalised construction
- Client's choice of Switchgear
- Drawout / Non-Drawout type
Manufactured Types
- Power Control Centre – PCC
- Motor Control Centre (MCC) Non Draw out type
- Motor Control Centre (MCC) Draw out type
- Control Panels
- Distribution Panels
- UPS Distribution Panels
- AMF Panels
- Auto Changeover Panels
- Starter Panels
- HVAC Panels
- Drive Panels
- Soft starter Panels
- PLC Panels
- Fire Fighting Panels
- Engine Control Panels
- Outdoor Feeder Pillars
- Skid Mounted Kiosks
- APFC Panels
- Detuned Reactor Panels
- Metering Panels
- Heater Control Panels
- SSR based Heater Control Panels
- Control and Relay Panels
- Annunciation Panels
- Street Light Control Panels
- Timer Panels
- Control Desks
- Remote Control Stations
- Mimic Panels
Technical Specifications
| Rated Service Voltage | 415 V |
| Rated Frequency : | 50hz |
| Busbar System : | Three Phase and Neutral |
| Rated Insulation Voltage : | 660 V |
| Max.Rating Of Busbars : | 4000 A and higher |
| Fault Level Withstand : | 50 kA rms for 1 second |
| Degree Of Protection : | IP52 as per IS-2147
IP54 as per IS-2147
IP55 for Outdoor Panels
|
Type Test Certificate
We have type tested our LT Panels and Rising Mains for Short Circuit withstand capacity of 50KA rms for 1 sec. We have type tested our Outdoor Enclosures for IP 55 Degree of protection.
