AC Drives

AC Drive

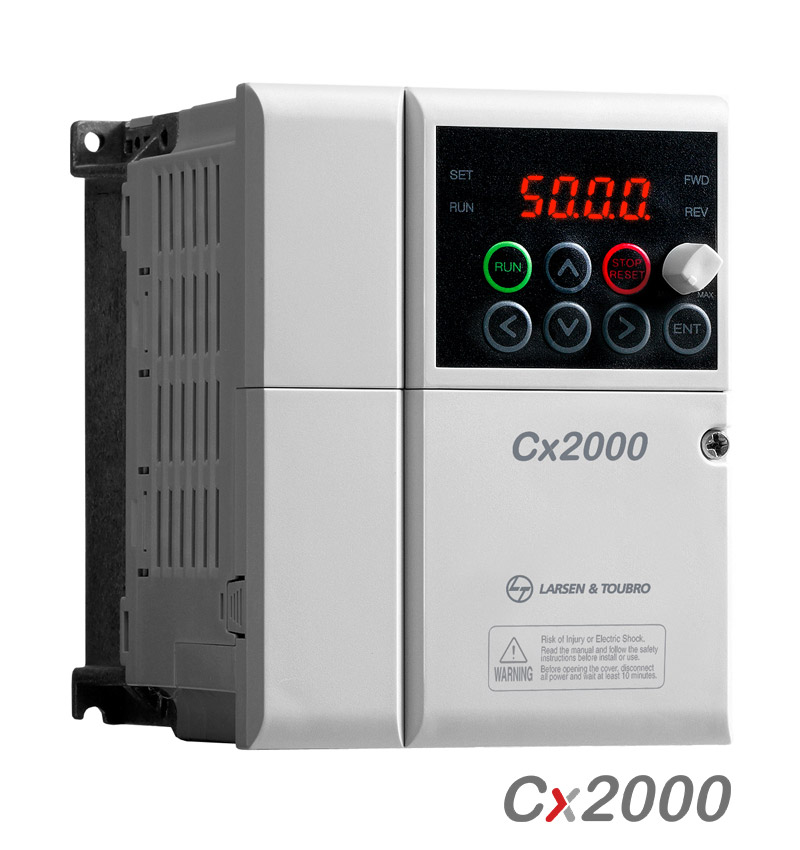

Cx 2000 : Compact Series

Range: 0.1 to 11kW
  Features:
  • V/F, Sensorless Vector Control
  • Built-in Potentiometer
  • Built-in PID
  • 150% Overload for 60 Sec
  • Built-in RS485 Modbus Communication Protocol
  • nbuilt 24V power source
  • 5DI, 1DO, 1AI, 1AO
 Applications:
       OEM Machines, Plastic & Textile Machines,  Fan & Pump, LT / CT Crane Control   etc...

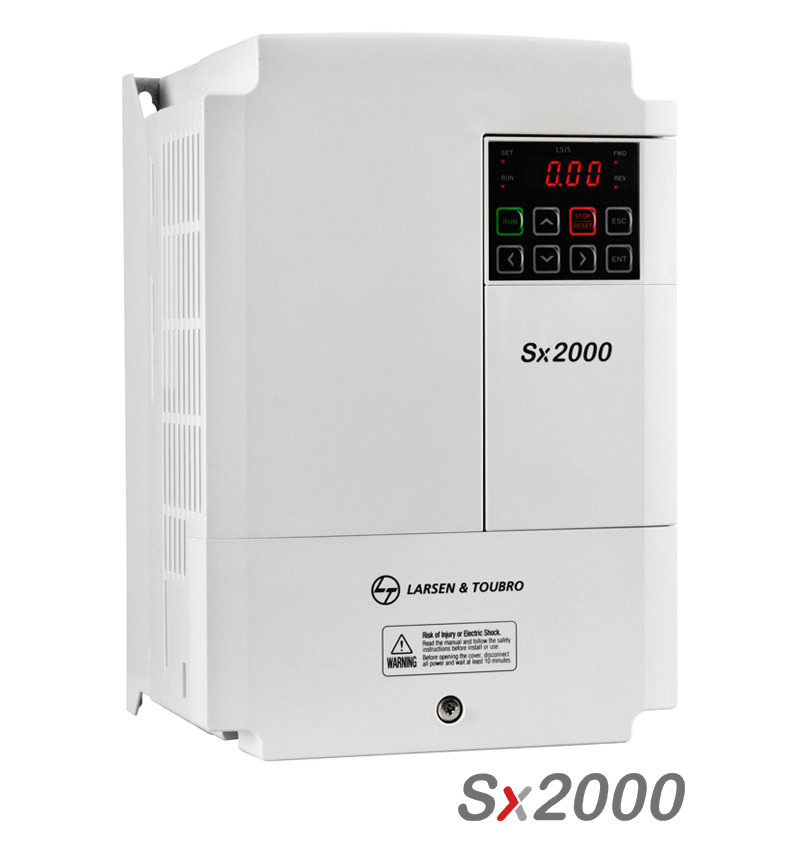

Sx 2000 : Smart Series

Range: 0.75 to 90kW (IP20) & 0.75 to 30kW (IP66)
  Features:
  • V/F, Sensorless Vector Control, Slip compensation,Starting Torque at 200% at 0.5Hz for Sensorless Control
  • Conformal Coating Class 3C2,Built-in RS485 Modbus Communication Protocol
  • Component Life Monitor,Peer to Peer Communication,User Sequence 7DI, 1(R) + 2(TR) DO, 2AI, 2AO
 Applications:
       OEM Machines, Elevators, Plastic & Textile Machinery, Fan & Pump, LT / CT Crane Control, Compressors,Conveyors, extruders etc...

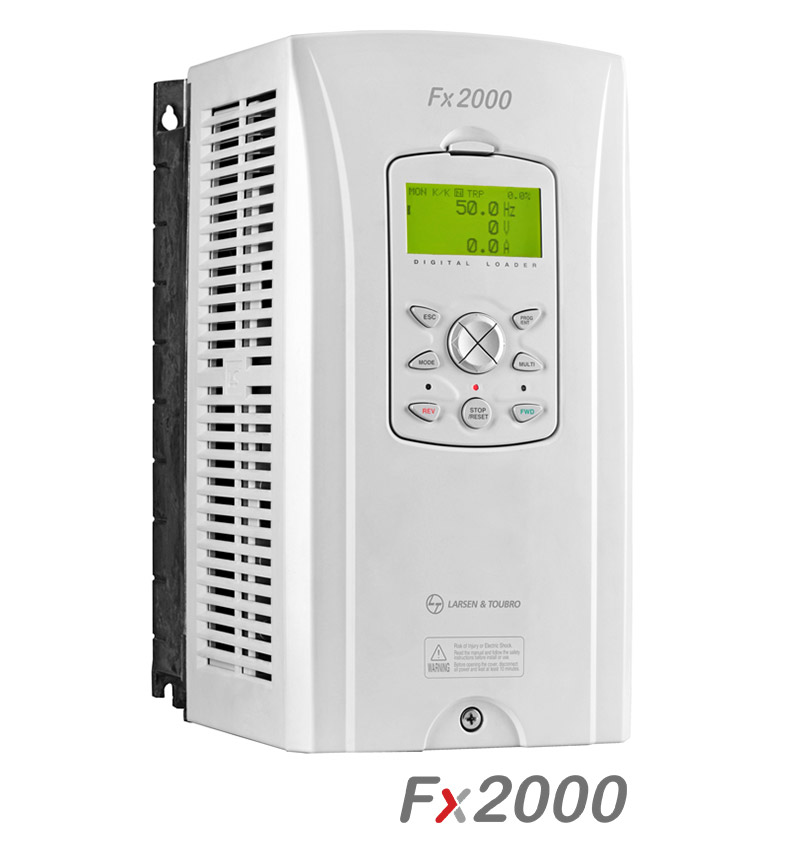

Fx 2000 : Flexi Series

Range: 0.75 to 450kW
 Features:
  • Sensorless, Flux Control,250% starting torque at 0 RPM in closed loop
  • Built-in Macros for Crane, Wobbulation etc,Winder Application
  • Auto Sequence,VFD Bypass
  • Smart PLC,Conformal Coating Class 3C2
  • Built-in RS485 Modbus Communication Protocol,8DI, 2(R) + 1(TR) DO, 2AI, 2AO
 Applications:
 Hoist Control, Plastic & Textile Machinery,

 Winders etc...

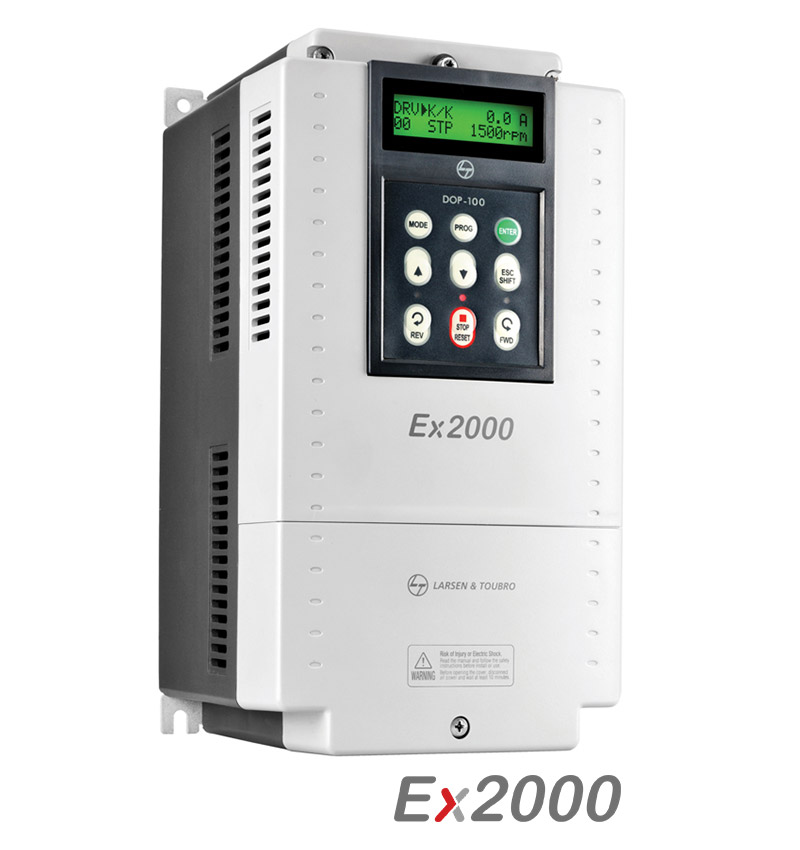

Ex 2000 : Energy Saver Series

Range: 5.5 to 450kW
 Features:
  • V/F, Sensorless Vector Control,Specialized functions for fan & pump
  • Energy-saving, high-efficiency,Built-in Booster pump control
  • Component Life Monitor,VFD Bypass
  • Removable control terminal,Conformal Coating Class 3C2
  • Built-in RS485 Modbus Communication Protocol,8DI, 4DO, 2AI, 2AO
 Applications:
 Fan & Pumps

Lx2000 : Lift Series

Range: 3.7 to 22kW(IP20) & 0.75 to 30kW (IP66)
  Features:
  • Ideal for High Speed Elevator Control,Suitable for geared / gearless machines
  • Compatibility with various types of encoders,Anti-roll-back algorithm
  • Load and direction based floor-levelling,Built-in ARD function
  • Conformal Coating Class 3C2,Built-in RS485 Modbus Communication Protocol
  • 11DI, 4DO, 3AI, 2AO Lift & Elevator
 Applications:

 Lifts & Elevators
